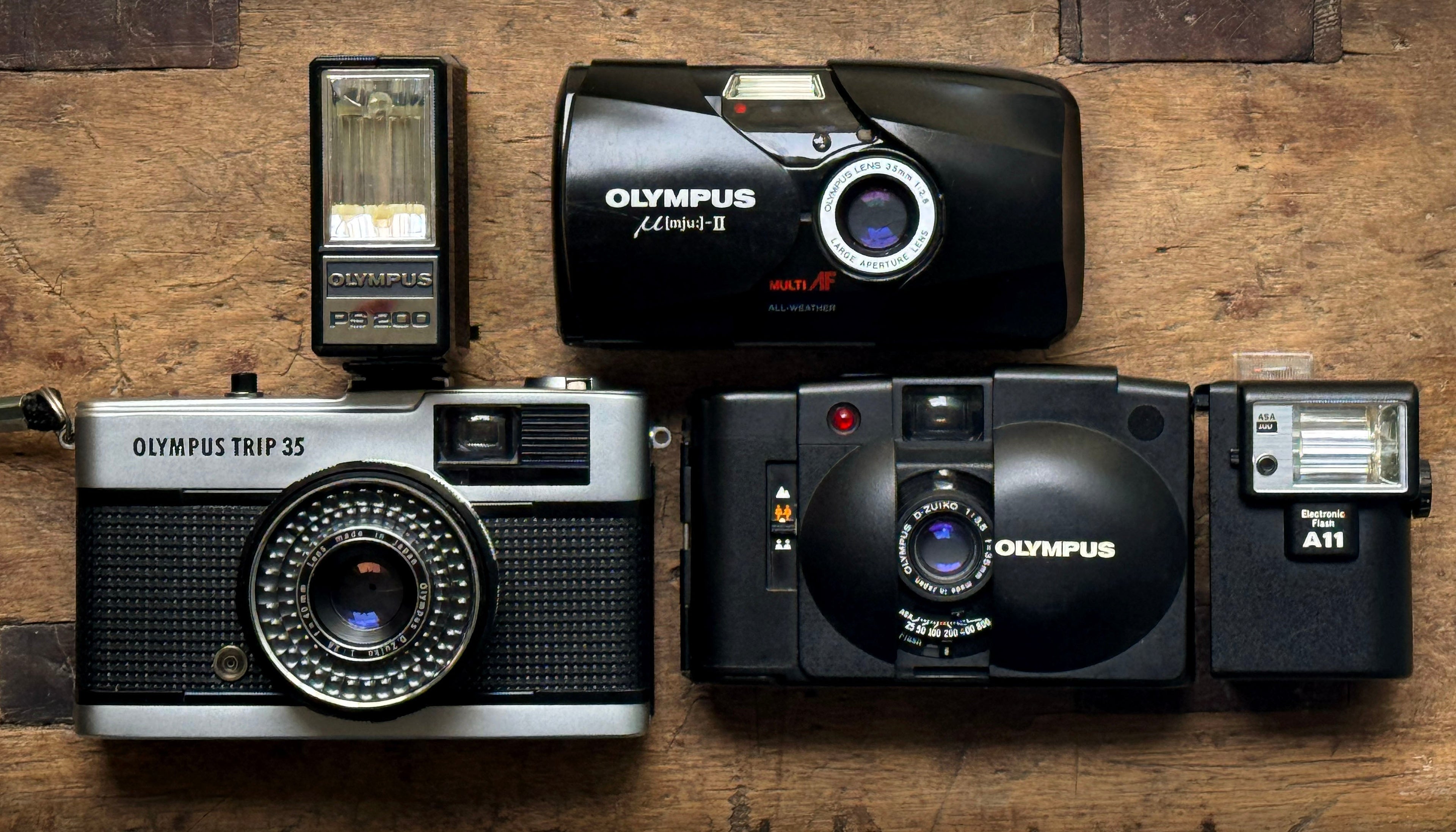

Olympus has a storied history in the world of photography, but it's arguably their compact film cameras that truly captured the hearts of millions. More than just point-and-shoots, these cameras represented a commitment to portability, quality, and user-friendliness. In order to explain the evolution of design in compact film cameras, we have 'zone' focused on three iconic models from the Olympus range.
1. The Trip 35 (1967): The Original "Set It and Forget It"
The Olympus Trip 35 is one of the most successful and beloved film cameras of all time, famed for its simplicity and reliability. Launched in 1967 this design is a classic, with an almost 'child-like' layout of lens, viewfinder, shutter button, winder, and rewind, all finished in gorgeous chrome, black, and orange highlights.
Its main innovation was the battery-free auto-exposure system, powered by a Selenium cell that surrounds the lens. Focusing was managed by a four-zone focus system selected using easy-to-follow icons etched into the lens barrel: Person, Couple, People, and Mountain. When set to 'A' for automatic, a bright red flag appears in the viewfinder if there is insufficient light to prevent underexposure. Designed for the "Golden Age" of Air travel, the neat Olympus Trip was a hit travel companion on the new family package holidays of the 60s and 70s. Since the camera is limited to just two shutter speeds (1/200th and 1/40th), lighting conditions requiring exposures slower than 1/40th @ f/2.8 necessitate the use of an external flash.
While compact cameras began featuring built-in flash more commonly from the 1990s, the first camera to incorporate one was the Voigtländer Vitrona in 1965.
2. The XA2 (1980): The Pocketable Revolution
The Olympus XA2 is the ultimate pocketable compact, featuring a protective clamshell design and a simplified three-zone focus system for rapid shooting.
In 1979, Yoshihisa Maitani, the legendary camera designer at Olympus, released the Olympus XA, the world's smallest Rangefinder. He aimed for a pocketable camera with SLR-type quality and control. The XA featured the now-famous sliding clamshell cover, which protects the lens and acts as the on/off switch, making the camera incredibly pocketable and durable. It was aimed at serious amateurs and professionals who wanted a carry-everywhere compact.
A year later, in 1980, Olympus used the same chassis and revolutionary clamshell design but incorporated an easier-to-use zone focus system similar to the Trip. The XA2 was an immediate hit. Unlike the original XA, the XA2 is exceptionally easy to use, featuring a fully program auto-exposure system and an excellent Zuiko 35mm f/3.5 lens. It also had the option of being used with or without a side-mounted flash unit.
Olympus developed the XA line further, including the battery-free XA1 (1982), the XA3 with DX coding (1985), and my personal favourite, the XA4 (1985), which featured a brilliant wide-angle 28mm Zuiko lens ideal for street photography.
In 1986, Olympus designers incorporated the clamshell philosophy into the world's first weatherproof fully automatic 35mm compact camera, the Olympus AF-1, earning it the nickname "Nurepika" (wet flash) in Japan. This now cult classic features auto-focus, fully automatic program exposure, and automatic wind/rewind. They are a bit battery-thirsty but brilliant nonetheless, though they often suffer from fungus on the inside of the weatherproofing in front of the lens.
3. The mju II (1997): The Peak of Point-and-Shoot
The Olympus mju II (Stylus Epic) is a weatherproof, ultra-compact point-and-shoot celebrated for its super sharp 35mm f/2.8 prime lens.
Evolved from the design philosophy of Maitani's XA series and utilizing the features developed in the AF-1, Olympus launched the very small and curvy µ[mju:] (pronounced mew) in 1991 (known as the Stylus in the US). I can remember this camera launching when I worked at a branch of Jessop the camera retailer in the UK. None of us knew how to pronounce it, but it was an instant hit, selling 5 million units over 10 years.
In 1997, Olympus followed the original mju with the launch of the now iconic mju II. Olympus refined the famous design to produce a solid, reliable, and slightly more ergonomic camera. The mju II has a smaller, sleeker body, finished with a chrome silver wrapped around the lens—possibly a nod to the 'silver nose' Zuiko SLR lenses of the 1960s. Some owners note the finish can appear more like a shimmering matte gold or a subtle champagne color depending on the lighting and production batch, adding a unique character. To celebrate 10 million sales, Olympus even released a limited edition all-burgundy mju II with gold accents.
The Olympus mju II is one of the most sought-after cameras in the film photography renaissance. It’s not just a camera; it’s a tiny, titanium-tinted statement that delivers brilliant results without demanding any effort.
A Legacy of Innovation
The journey from the Trip 35 to the mju II is a powerful narrative of Olympus’s relentless pursuit of the perfect compact camera.
The Trip 35 established the core value: making quality photography accessible to everyone through battery-free simplicity and zone focusing. The XA2 radically compressed this concept, introducing the protective clamshell and proving that a pocketable camera could deliver serious optical performance. Finally, the mju II synthesized these elements with advanced 1990s technology, delivering the ultimate point-and-shoot: fast, weather-sealed, and boasting a razor-sharp lens. This evolution shows a clear path of innovation, moving from mechanical genius to electronic sophistication, culminating in a series of cameras that continue to capture hearts and unforgettable images in the modern film revival.
