Originally introduced by Kodak in 1983, DX coding revolutionised the way cameras interact with film, simplifying the process and reducing the chances of exposure errors. Think of it as your cameras QR code, allowing the Camera to read the film manufacturers data.
What is DX Film Coding?
At its core, DX (Digital indeX) coding is a standardized system for marking 35mm and APS film cartridges with crucial information. This information is then automatically read by compatible cameras and even by photo-finishing machines for correct development. The DX code consists of a few key components:
- Camera Auto Sensing (CAS) Code: This is the most visible part to photographers. It's a 2x6 grid of rectangular contact areas on the side of the metal film cartridge. These areas are either conductive (bare metal) or non-conductive (painted). Electrical contacts within the camera read this pattern to determine:
- Film Speed (ISO): This is the most frequently utilized piece of information, allowing the camera to automatically set the correct ISO sensitivity for the film loaded.
-
Film Length (Number of Exposures): This tells the camera how many frames are on the roll (e.g., 24 or 36 exposures).
- Exposure Latitude: This indicates the film's tolerance for over or underexposure. While less commonly utilized by consumer cameras, it's part of the full DX standard.
-
Barcode on the Cartridge: This barcode, located near the film exit lip, is primarily for photo-finishing machines. It contains details about the film manufacturer, film type, and the required development process.
-
Latent Image Barcode on the Film Edge: Invisible until developed, this barcode is optically imprinted below the sprocket holes on the film itself. It contains data such as film type, manufacturer, and frame number, used by photo labs for individual frame identification and printing.
How DX Coding Works (and Why it Matters)
Before DX coding, photographers had to manually set the ISO on their cameras every time they loaded a new roll of film. Forgetting to do so could lead to over or underexposed images. DX coding automated this.
When you load a DX-coded film cartridge into a compatible camera, the camera's internal contacts make contact with the conductive and non-conductive patches on the cartridge. This creates a unique electrical circuit pattern that the camera's electronics interpret. Based on this pattern, the camera instantly knows the film's ISO and adjusts its internal light meter and exposure settings accordingly.
This system offers several significant benefits:
-
Convenience: It eliminates the need for manual ISO setting, making film photography simpler and faster, especially for casual users and point-and-shoot cameras.
- Accuracy: By ensuring the camera always knows the correct film speed, DX coding significantly reduces the likelihood of exposure errors, leading to more consistently well-exposed images.
- User-Friendliness: It lowered the barrier to entry for film photography, allowing more people to enjoy the medium without needing extensive technical knowledge.
-
Streamlined Processing: The barcodes on the cartridge and film itself aid automated photo labs in correctly identifying and processing the film, further enhancing efficiency.

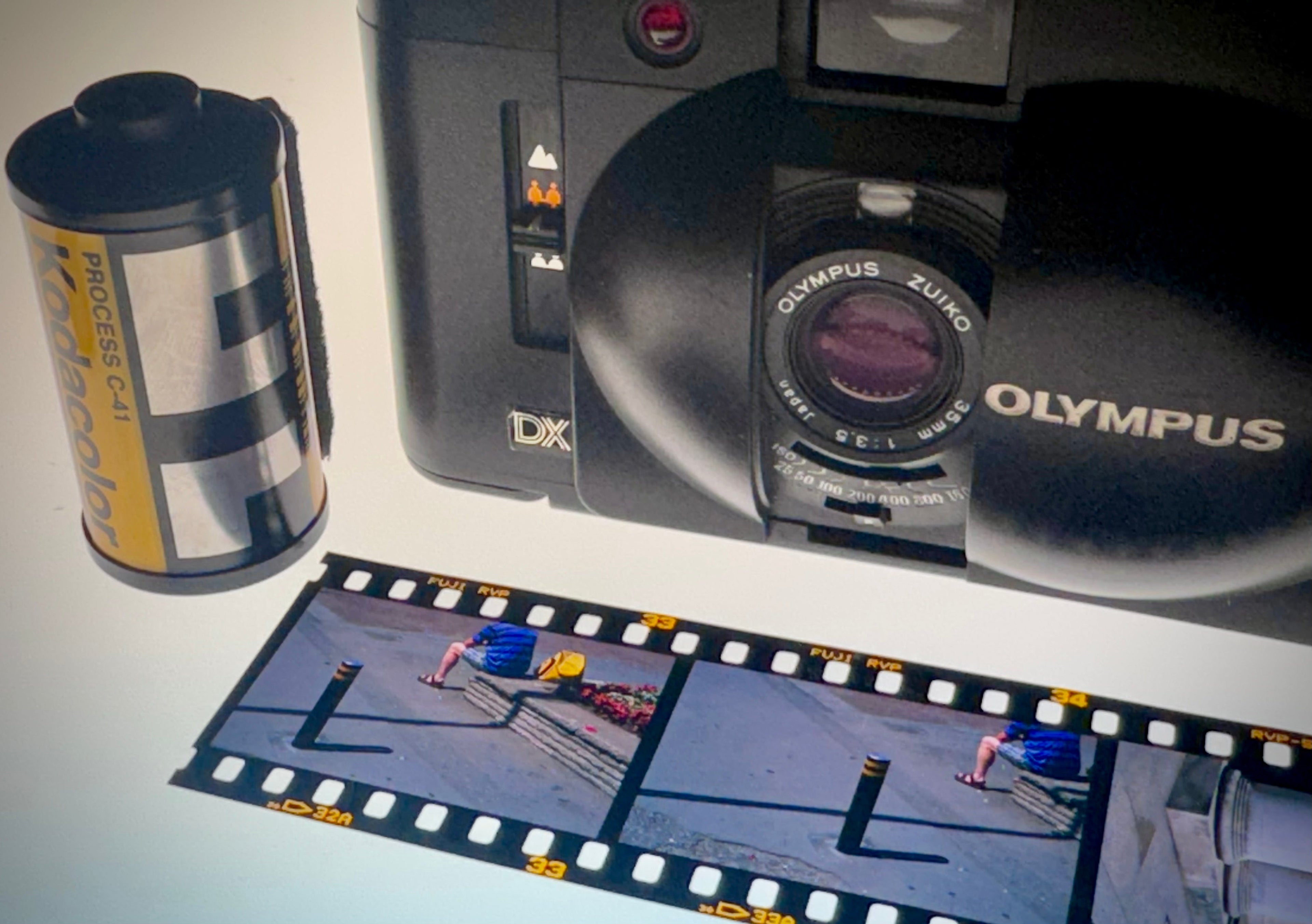

DX Film Coding and Olympus Cameras
Olympus, widely adopted DX coding across its range, particularly in its popular compact "point-and-shoot" cameras like the Olympus Mju (Stylus) series.
These Olympus cameras were designed to leverage DX coding for a seamless user experience. You simply drop in a DX-coded film roll, close the back, and the camera automatically sets the correct ISO. This "set it and forget it" functionality was a key selling point for many Olympus models, contributing to their widespread popularity among consumers.
If you're unsure if your specific Olympus camera supports DX coding, you can often check the film chamber for small metal pins.
